New Roles for Custom Setting f3 “Custom Controls (Playback)”

Additions have been made to the roles available for Custom Setting f3 [Custom controls (playback)]. Custom controls can now also be reset.

New Reset Option

You can now reset selected controls to their default roles in the Custom Setting f3 [Custom controls (playback)] control-selection display.

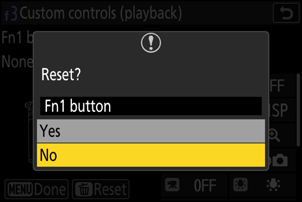

Highlight the desired control and press O to display a confirmation dialog where you can reset the control to its default role by highlighting [Yes] and pressing J.
Pressing and holding the O button for about three seconds when a control is highlighted displays a confirmation dialog where you can reset all controls to their default roles by highlighting [Yes] and pressing J.

Newly Customizable Controls

The following controls can now be customized:

E [Exposure compensation button]
W [Illuminator button]
F [ISO sensitivity button]

New Roles

Additional roles can now be assigned to buttons or the command dials.

Roles Available for Buttons

Option		Description
O	[Delete]	Press the control once to display a confirmation dialog. Press the control again to delete the current picture and return to playback.
D	[LCD illumination]	Press the control to light the control panel. Press it again to turn it off.
Y	[Jump to the source image]	Press the control to jump to a source image from its retouched copy.
7	[RAW processing (current picture)]	Press the control to display retouch options for the assigned role.
e	[RAW processing (multiple pictures)]
k	[Trim]
8	[Resize (current picture)]
f	[Resize (multiple pictures)]
i	[D-Lighting]
Z	[Straighten]
a	[Distortion control]
e	[Perspective control]
l	[Monochrome]
g	[Overlay (add)]
h	[Lighten]
i	[Darken]
j	[Motion blend]

Roles Available for “Main Command Dial”/“Sub-Command Dial”

Option	Description
[Frame advance zoom position]	[Prefer focus point (face priority)]: Center the display on the focus point active when the photograph was taken. However, if a person's face is detected in the photograph, playback zoom will be performed with the face at the center.
[Playback zoom face selection]	If [ON] is selected, when multiple faces are detected in the picture during playback zoom, the sub-command dial can be rotated to switch between the detected faces. This role can only be assigned to the [Sub-command dial].

Option

Description

[Frame advance zoom position]

[Prefer focus point (face priority)]: Center the display on the focus point active when the photograph was taken. However, if a person's face is detected in the photograph, playback zoom will be performed with the face at the center.

[Playback zoom face selection]

If [ON] is selected, when multiple faces are detected in the picture during playback zoom, the sub-command dial can be rotated to switch between the detected faces.

This role can only be assigned to the [Sub-command dial].

New Roles Available Via “Main Command Dial”/“Sub-command Dial” > “Frame Advance”

Option	Description
[Uploaded to FTP]	Skip to the next or previous picture that has been uploaded to an FTP server.
[Uploaded to computer]	Skip to the next or previous picture that has been uploaded to a computer.

New Roles Available Via “Main Command Dial”/“Sub-command Dial” > “Video Playback”

Option	Description
[Playback speed]	Choose the video playback speed. You can toggle between the original speed, ¹/₂× speed, and ¹/₄× speed.
